industrial steel grating Galvanized Steel Press Lock Welded Grating price

  • 1
  • 2

Brand Name : TT

Model Number : TT-2

Certification : ISO 9001

Place of Origin : Anping,china

Price : Negotiable

Payment Terms : L/C T/T

Supply Ability : 100TONS/DAY

Delivery Time : 3-10work days

Packaging Details : Wooden Pallet/Steel Pallet Or As The Customar require

Product Name : Press Lock Steel Grating

Grating Standard : YB/T4001.1-2007

Process : Welding

Surface Treatment : Hot Dip Galvanized

Packing : Wooden or Steel Pallet

Port : Tianjin

Contact Now

Galvanized Steel Press Lock Welded Grating For Marine Passage Special Shape


Pressure Lock Grating Description:


Pressure-Lock Steel Grating made by welding with flat steel bearing and crossing bars with certain distances.
Pressure Lock Grating goes through cutting, opening, edging and other processes. The products enjoy the feature of high strength, light structure, high bearing, convenience for loading and other propertier.


The hot dipped zinc coating gives the product excellent anti-corrosion.
Pressure Lock Grating consist of a series of bearing bars cross jointed by welding at various intervals with cross bars (twisted square bars, square bars, round bars, flat bars, etc), to form a kind of steel products with square lattices among them.

Features:

1, High strength and light structure,


2, Powerful anti-corrosion, durable and long working life,


3, Beautiful appearance, bright surface,


4, No dirt-rain-snow deposit, automatic cleaning, easy maintenance.,


5, Good ventilation, day-lighting, heat-dispersing, resistant to sliding and explosion,


6, Easy installation and disassembly,

Common Specification List
Bearing BarSpacing Cross Bar Spacing Bearing Bar Specification(Depth×Thickness)
20×3 25×3 32×3 40×3 20×5 25×5
30 100 G203/30/100 G253/30/100 G323/30/100 G403/30/100 G205/30/100 G255/30/100
50 G203/30/50 G253/30/50 G323/30/50 G403/30/50 G205/30/50 G255/30/50
40 100 G203/40/100 G253/40/100 G323/40/100 G403/40/100 G205/40/100 G255/40/100
50 G203/40/50 G253/40/50 G323/40/50 G403/40/50 G205/40/50 G255/40/50
60 50 - G253/60/50 G253/60/50 G403/60/50 G205/60/50 G255/60/50
Bearing BarSpacing Cross Bar Spacing Bearing Bar Specification(Depth×Thickness)
32×5 40×5 45×5 50×5 55×5 60×5
30 100 G325/30/100 G405/30/100 G455/30/100 G505/30/100 G555/30/100 G605/30/100
50 G325/30/50 G405/30/50 G455/30/50 G505/30/50 G555/30/50 G605/30/50
40 100 G325/40/100 G405/40/100 G455/40/100 G505/40/100 G555/40/100 G605/40/100
50 G325/40/50 G405/40/50 G455/40/50 G505/40/50 G555/40/50 G605/40/50
60 50 G325/60/50 G405/60/50 G455/60/50 G505/60/50 G555/60/50 G605/60/50


Grating Standard

Material Standard

HDG Standard

Handrail Standard
YB/T4001-2007 GB704-88 GB/T13912-92 4053.3-93
ANSI/NAAMM ASTM (A36) ASTM (A123)
BS4592-1995 BS4360 (43A) BS729 BS6399/BS6180
AS1657-1992 AS3679 AS1650 1650-1985

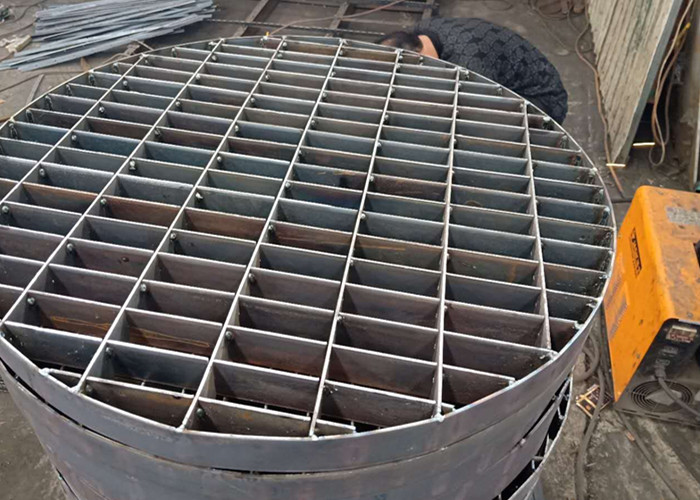

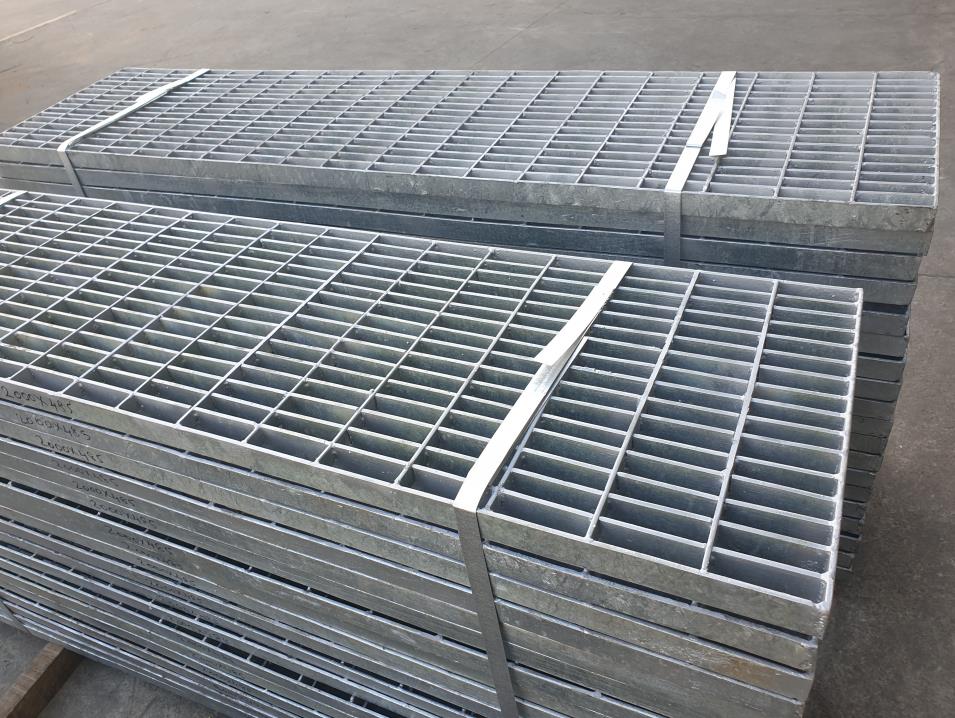

Pressure-Lock Grating Picture:

industrial steel grating Galvanized Steel Press Lock Welded Grating price
industrial steel grating Galvanized Steel Press Lock Welded Grating price
